Gantry Machining Center LM-3227NC
Share to:

Gantry Machining Center LM-3227NC

  • LM-3227NC
  • GOODA

Product Description

Function Introduction of the LM-3227NC

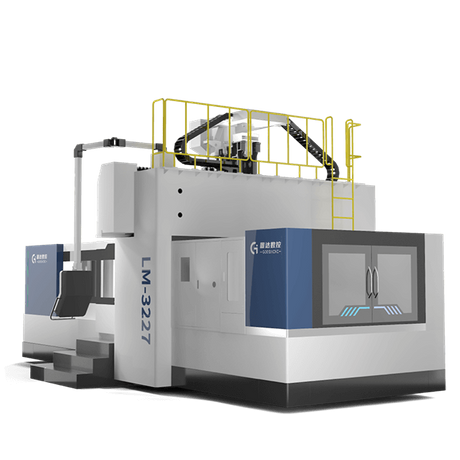

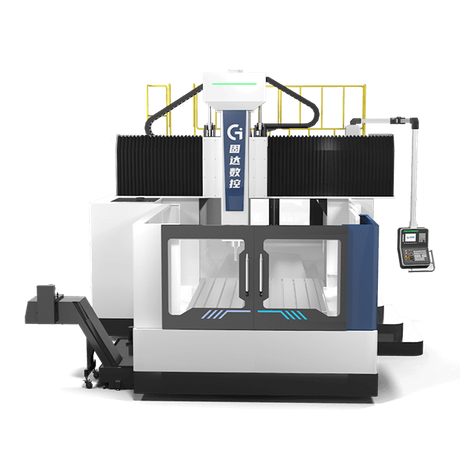

gantry machining center-LM-3227NC


GooDa Gantry Machining Center LM-3227NC: A single clamping of the workpiece can complete various processes such as milling, boring, drilling, and tapping. The bed is cast as a whole structure.

Optional configurations include tool magazines and 90°angle milling heads as needed.

Widely used in the machining of large components in industries such as shipbuilding, aerospace, machinery, transportation, automotive, and petrochemicals.


Advantages

1. Machine Castings


The castings use dovetails and multi-box type structures, allowing for minimal stress and resistance to torsional deformation, and excellent vibration absorption performance.


2. Spindle


High-precision spindle unit uses an air curtain protection system to prevent cutting fluids, dust, etc., from entering the spindle interior, thus protecting the spindle bearings.


3. Z-axis


The Z-axis adopts a three-sided enclosure design, with four roller linear guideways and a center-driven structure.


4. ATC System


Automated tool changing for fast and precise operations.

Chain-type tool magazine: BT50, 32T.



LM-3227NC Value Unit
Travel X/Y/Z Travel 3200*2760*1000 mm
Worktable Size(L*W) 3000*2100 mm
Max. load 10000 KG
T-slot (amount-width*center distance) 8-28*200-2-28*160 /
Capacity Distance between columns 2500 mm
Distance from spindle end face to worktable(St.) 150-1150 mm
Feed Guideway X/Y/Z axis: roller rail guideway /
Rapid feed rate 12/12/12 m/min
X/Y/Z cutting feed rate(Max.) 10/8/8 m/min
Spindle Spindle taper(model-diameter-RPM) BT50-190-6000 /
Motor Spindle motor power 22/26 KW
X/Y/Z servo motor power X:36; Y:36; Z:36 N·m
ATC Number of tools 32 T
Machine weight & size Weight 38 T
Size (L*W*H) 9050*5275*5415 mm

*Note: Parameter above is for reference only, please contact us for more detailed data or inquire customized solutions.
