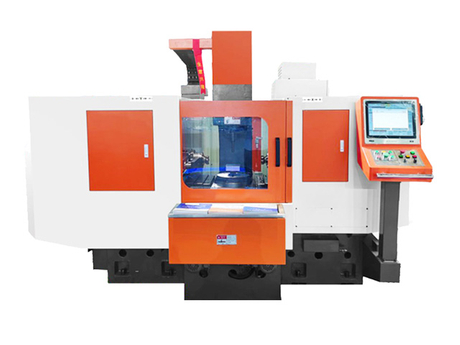

YG-300NC GooDa Duplex CNC Milling Machine

Features of GooDa Duplex Milling
GooDa Machinery can perform duplex milling on any of the following materials:

· Steel

· Stainless steel

· Tool steels

· Hot work die steel

· Cold work tool steel

· Plastic mold steel

· Raw metal

· Aluminum

· Ferrous or non-ferrous metals

· Cast iron

· Mold plate

· other six-sided square metal

Our duplex mills handle various length pieces and produce blanks within 0.02mm tolerances.
Automatically complete the rough &  finish milling at once set.
GooDa duplex milling machine can bring you an excellent way to preserve valuable, in-house manufacturing time,to save employee hours and dollars.

Advantages of GooDa Duplex Milling

· 4-sides processing only need once loaded .

· Process capability to mill virtually any square-shape material

· Flat, square and parallel tolerances to 0.001"

· Finish surface roughness is Ra0.6~1.25um according to the material hardness

Technical Parameters
Items		YG-300NC
Cutting capacity	Cutting size	20-350 mm
	Cutting height	145 mm
	Cutting depth	2 x 2.0 mm
Worktable	Dimensions	260 x 260 mm
	Max loading weight	200 kg
Spindle	Spindle speed                                                  (Infinitely variable speeds)	50-200 rpm
	Spindle power	2x 7.5 kw
	Spindle taper	NT50
	Cutting diameter	150 mm
X/Y/Z Axis	X/Y/Z axis motor power	3.0/3.0/3.0 kw
	X/Y/Z Max feed speed	9000/9000/9000 m/min
Accuracy	Squareness	0.02 mm/300mm
	Accuracy for dimension	0.02 mm/300mm
Others	Power	AC380V/200 20KVA
	Machine net weight	5500 kg
	System	Mitsubishi System

*Design&specifications are subject to change without notice!
